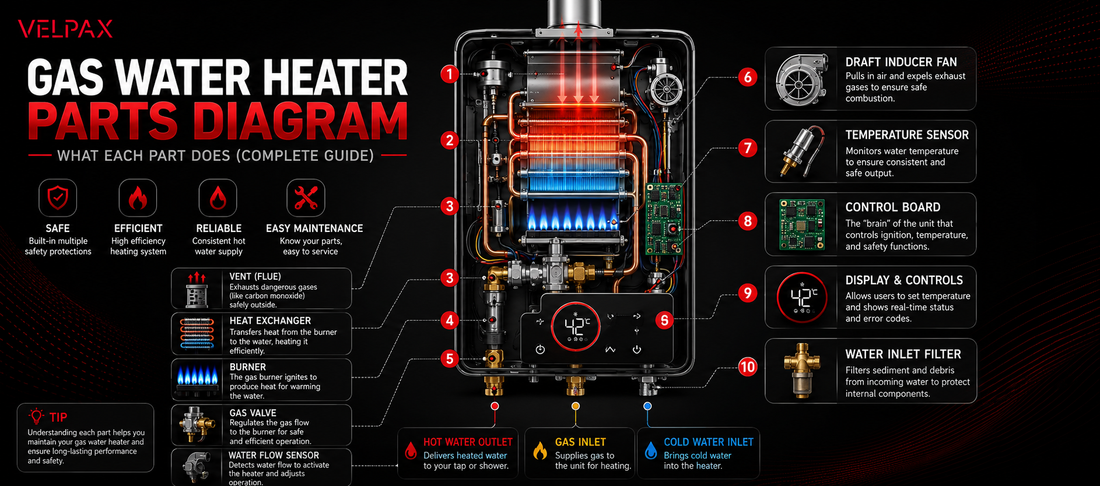

Gas Water Heater Parts Diagram – What Each Part Does (Complete Guide)
A gas water heater contains several key components that work together to heat and deliver hot water to your home. Understanding these parts helps homeowners maintain their system and diagnose common issues.
In this guide, we explain the main gas water heater components and how each part functions inside the system.
Main Components of a Gas Water Heater
- Burner
- Thermostat
- Dip Tube
- Anode Rod
- Flue Pipe
- Gas Control Valve
- Hot Water Outlet
1. Burner
The burner is located at the bottom of the tank and is responsible for heating the water. It ignites natural gas or propane to produce heat that transfers through the tank.
The burner is controlled by the thermostat to maintain the desired water temperature.
2. Thermostat
The thermostat monitors the water temperature inside the tank. When the temperature drops below the set level, it signals the gas valve to ignite the burner.
This automatic control keeps water consistently hot while preventing overheating.
3. Dip Tube
The dip tube directs incoming cold water to the bottom of the tank. This allows the burner to heat the cold water efficiently without mixing it immediately with hot water at the top.
4. Anode Rod
The anode rod protects the tank from corrosion. It attracts minerals and corrosive elements in the water, preventing them from damaging the steel tank.
Replacing the anode rod regularly can extend the life of your water heater.
5. Flue Pipe
The flue pipe runs through the center of the tank and vents combustion gases safely outside the home.
This component also helps improve heating efficiency by directing heat through the tank.
How These Components Work Together
When cold water enters the tank through the dip tube, the thermostat monitors the temperature and activates the burner if necessary. The burner heats the water, and the hot water rises to the top of the tank where it exits through the outlet pipe.
If you want to understand the full heating process, read our guide:
How Does a Gas Water Heater Work
Maintenance Tips for Water Heater Components
- Inspect the burner annually
- Flush the tank once per year
- Check the anode rod every 2–3 years
- Ensure the flue pipe is not blocked
For detailed maintenance steps see:
Gas Water Heater Maintenance Guide
Conclusion
Understanding the main components of a gas water heater can help homeowners maintain their systems more effectively and recognize potential problems early.
